Description
Dimensions A–K refer to the dimensional drawing in the HORIZON product guide. E = stud size.

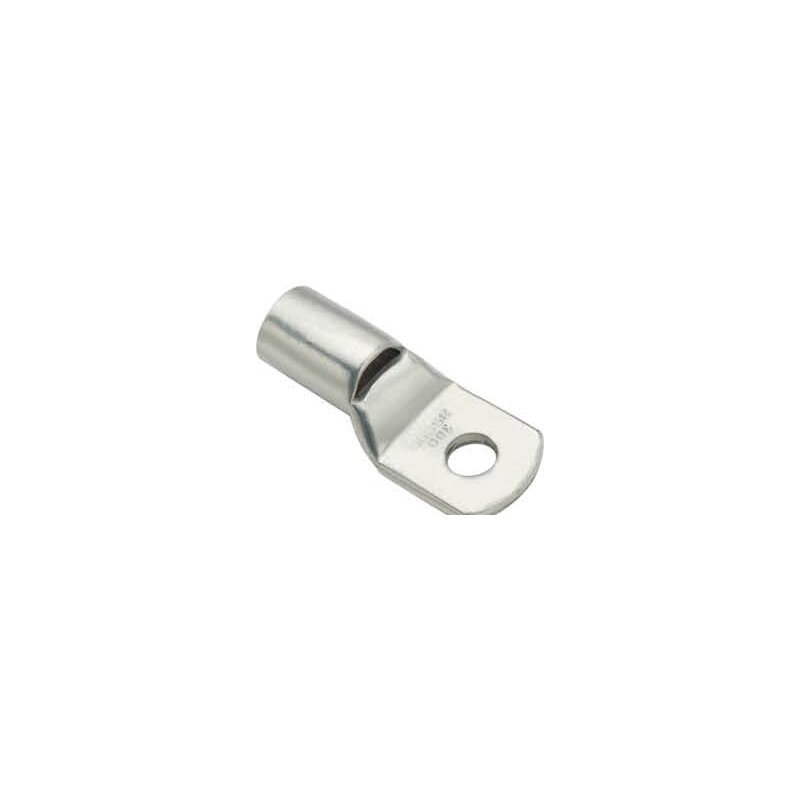

Copper Cable Lugs
Copper cable lugs for conductor sizes from 2.5 mm² to 1000 mm², with stud sizes M5 to M20.
- Reference
- HE830-02 – HE830-1000
- Type
- Copper cable lug
- Conductor range
- 2.5 mm² to 1000 mm²
- Stud sizes
- M5 to M20
- Available sizes
- 21 sizes – see table
Technical specifications
| Type | Copper cable lug |
|---|---|
| Conductor range | 2.5 mm² to 1000 mm² |
| Stud sizes | M5 to M20 |
Sizes & reference numbers
| Size (mm²) | E (stud) | A | C | D | F | B | K | H | G | J | Ref. No. | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.5 | M5 | 2.0 | 3.7 | 9 | 1.0 | 7 | 3 | 5 | 5 | 20 | HE830-02 | Enquire |
| 4.0 | M6 | 3.1 | 4.8 | 11 | 1.0 | 7 | 3 | 6 | 6 | 22 | HE830-04 | Enquire |
| 6.0 | M6 | 3.8 | 5.5 | 11 | 1.0 | 9 | 3 | 6 | 6 | 24 | HE830-06 | Enquire |
| 10 | M6 | 4.4 | 6.2 | 11 | 1.3 | 9 | 3 | 6 | 6 | 24 | HE830-10 | Enquire |
| 16 | M6 | 5.3 | 7.1 | 11 | 1.6 | 12 | 4 | 8 | 6 | 30 | HE830-15 | Enquire |
| 25 | M6 | 7.0 | 9.0 | 13 | 2.0 | 12 | 5 | 12 | 8 | 37 | HE830-25 | Enquire |
| 35 | M6 | 8.0 | 10.0 | 15 | 2.0 | 12 | 5 | 12 | 8 | 37 | HE830-35 | Enquire |
| 35 | M8 | 8.0 | 10.0 | 15 | 2.0 | 12 | 5 | 12 | 8 | 37 | Enquire | |
| 50 | M6 | 9.2 | 11.2 | 16 | 2.0 | 16 | 8 | 11 | 10 | 45 | HE830-50 | Enquire |
| 50 | M8 | 9.2 | 11.2 | 16 | 2.0 | 16 | 8 | 11 | 10 | 45 | Enquire | |
| 50 | M10 | 9.2 | 11.2 | 16 | 2.0 | 16 | 8 | 11 | 10 | 45 | Enquire | |
| 70 | M8 | 11.6 | 13.8 | 20 | 2.2 | 18 | 10 | 15 | 13 | 56 | Enquire | |
| 70 | M10 | 11.6 | 13.8 | 20 | 2.2 | 18 | 10 | 15 | 13 | 56 | Enquire | |
| 70 | M12 | 11.6 | 13.8 | 30 | 2.2 | 18 | 10 | 15 | 13 | 56 | HE830-70 | Enquire |
| 95 | M10 | 12.6 | 15.6 | 23 | 2.8 | 20 | 10 | 15 | 13 | 58 | Enquire | |
| 95 | M12 | 12.8 | 15.6 | 23 | 2.8 | 20 | 10 | 15 | 13 | 58 | HE830-95 | Enquire |
| 120 | M10 | 14.8 | 17.8 | 26 | 3.0 | 22 | 10 | 16 | 14 | 62 | HE830-120 | Enquire |
| 120 | M12 | 14.8 | 17.8 | 26 | 3.0 | 22 | 10 | 16 | 14 | 62 | Enquire | |
| 120 | M16 | 14.8 | 17.8 | 26 | 3.0 | 22 | 10 | 16 | 14 | 62 | Enquire | |
| 150 | M10 | 16.0 | 19.6 | 28 | 3.6 | 26 | 11 | 18 | 15 | 70 | HE830-150 | Enquire |
| 150 | M12 | 16.0 | 19.6 | 28 | 3.6 | 26 | 11 | 18 | 15 | 70 | Enquire | |
| 150 | M16 | 16.0 | 19.6 | 28 | 3.6 | 26 | 11 | 18 | 15 | 70 | Enquire | |
| 185 | M12 | 18.0 | 22.0 | 32 | 4.0 | 30 | 11 | 21 | 21 | 83 | HE830-185 | Enquire |
| 185 | M16 | 18.0 | 22.0 | 32 | 4.0 | 30 | 11 | 21 | 21 | 83 | Enquire | |
| 225 | M16 | 20.0 | 24.0 | 35 | 4.0 | 34 | 13 | 24 | 24 | 95 | HE830-225 | Enquire |
| 240 | M16 | 22.0 | 26.0 | 38 | 4.0 | 36 | 13 | 24 | 24 | 97 | HE830-240 | Enquire |
| 240 | M20 | 22.0 | 26.0 | 38 | 4.0 | 36 | 13 | 24 | 24 | 97 | Enquire | |
| 300 | M16 | 24.0 | 28.7 | 42 | 4.7 | 39 | 13 | 26 | 25 | 103 | HE830-300 | Enquire |
| 300 | M20 | 24.0 | 28.7 | 42 | 4.7 | 39 | 13 | 26 | 25 | 103 | Enquire | |
| 400 | M20 | 28.0 | 33.2 | 49 | 5.2 | 44 | 18 | 27 | 27 | 116 | HE830-400 | Enquire |
| 500 | M20 | 30.0 | 36.0 | 53 | 6.0 | 48 | 18 | 27 | 27 | 120 | HE830-600 | Enquire |
| 630 | M20 | 35.0 | 41.5 | 61 | 6.5 | 55 | 18 | 33 | 31 | 137 | HE830-830 | Enquire |
| 800 | 39.0 | 46.3 | 67 | 7.3 | 65 | 25 | 38 | 37 | 165 | HE830-800 | Enquire | |
| 1000 | 43.0 | 53.8 | 76 | 10.8 | 90 | 30 | 45 | 45 | 210 | HE830-1000 | Enquire |
