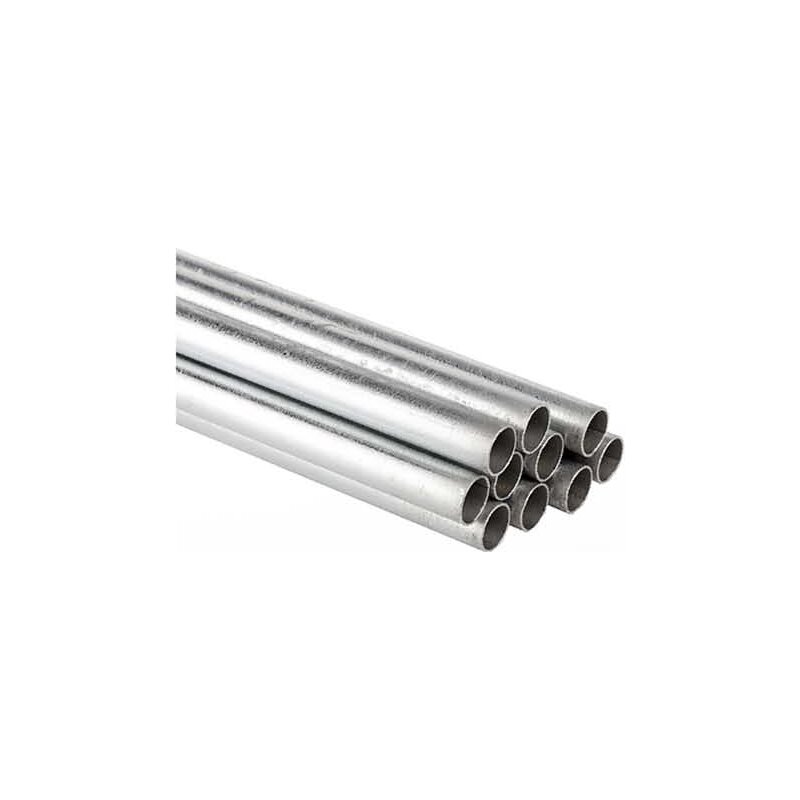

Electrical Metallic Tubing (EMT)
Galvanised steel EMT for easy wire pulling, fast coupling and accurate bending – ½” to 2″.
- Reference
- HECON-½" – HECON-2"
- Material
- Steel
- Finish
- Hot Dip Galvanised / Pre Galvanised
- Features
- Easy wire pushing and pulling; easy coupling and fast installation; fast and accurate bending
- Available sizes
- 6 sizes – see table
Technical specifications
| Material | Steel |
|---|---|
| Finish | Hot Dip Galvanised / Pre Galvanised |
| Features | Easy wire pushing and pulling; easy coupling and fast installation; fast and accurate bending |
Sizes & reference numbers
| Size (inch) | Outer dia. (inch) | Outer dia. (mm) | Wall (inch) | Wall (mm) | Ref. No. | Enquire |
|---|---|---|---|---|---|---|
| ½" | 0.706 | 17.93 | 0.042 | 1.07 | HECON-½" | Enquire |
| ¾" | 0.922 | 23.42 | 0.049 | 1.25 | HECON-¾" | Enquire |
| 1" | 1.163 | 29.54 | 0.057 | 1.45 | HECON-1" | Enquire |
| 1¼" | 1.510 | 38.35 | 0.065 | 1.65 | HECON-1¼" | Enquire |
| 1½" | 1.740 | 44.20 | 0.065 | 1.65 | HECON-1½" | Enquire |
| 2" | 2.197 | 55.80 | 0.065 | 1.65 | HECON-2" | Enquire |
