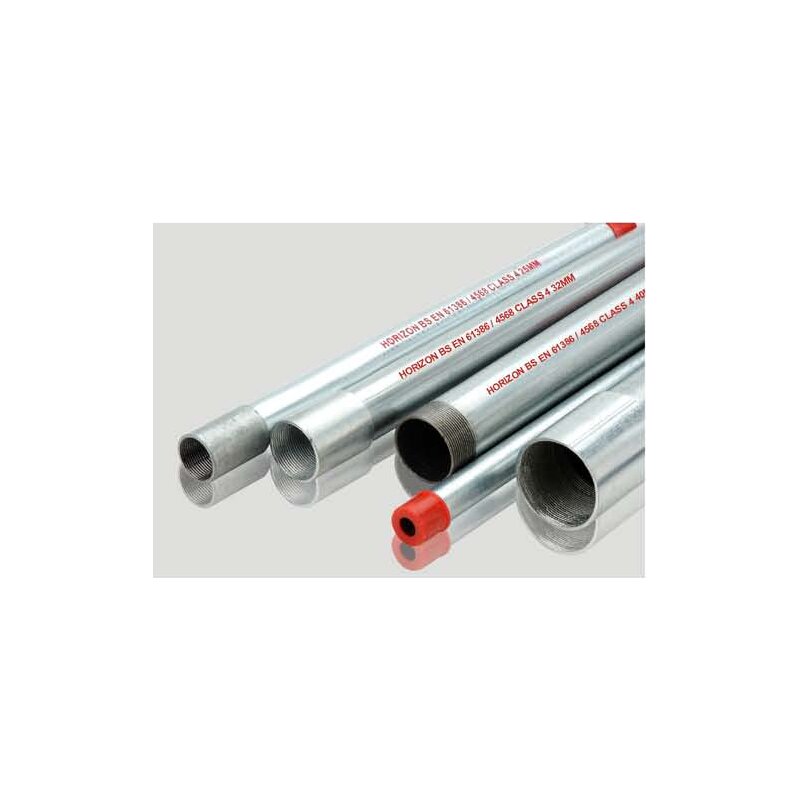

Hot dip galvanised / pre-galvanised steel conduit to BS EN 61386, supplied in 3.75 m lengths threaded both ends.
| Material | Steel |
|---|---|
| Finish | Hot Dip Galvanised / Pre Galvanised |
| Standard | Class 4 and Class 3 as per BS EN 61386 (page header: BS 4568 / BS EN 50086 / IEC 61386 Part 1) |
| Length | 3.75 m standard length, threaded both ends |
| Supply | One end fitted with coupling, other end with plastic end cap |
| Nominal size (mm) | OD min (mm) | OD max (mm) | Thread length min (mm) | Thread length max (mm) | Ref. No. | Enquire |
|---|---|---|---|---|---|---|
| 20 | 19.7 | 20.0 | 13.0 | 15.0 | HECON-20 | Enquire |
| 25 | 24.6 | 25.0 | 16.0 | 18.0 | HECON-25 | Enquire |
| 32 | 31.6 | 32.0 | 18.0 | 20.0 | HECON-32 | Enquire |
| 40 | 39.50 | 40.0 | 19.0 | 21.0 | HECON-40 | Enquire |
| 50 | 49.50 | 50.0 | 21.0 | 23.0 | HECON-50 | Enquire |
Steel conduit supplied in a standard length of 3.75 metres, threaded at both ends, with one end fitted with a coupling and the other protected by a plastic end cap.
Cable-capacity and support-spacing guidance tables (based on the 16th edition IEE Wiring Regulations) are included in the HORIZON product guide and are available on request.
Send your sizes, finishes and quantities – our team will come back with a quotation.
